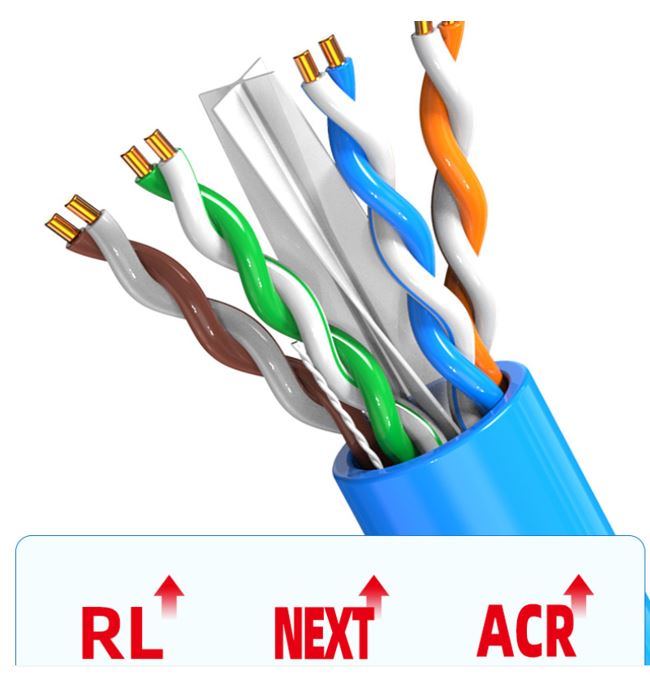

8Ware 350m CAT6A Ethernet 24AWG 30V LAN Cable Bare Copper Twisted Core PVC Jacket Reel Box Blue >305m

Conductor Construction(mm) 1/0.508±0.005
Material Bare Copper
Cabling OD (mm) 0.508
Insulation Material HDPE
OD(mm) 0.90±0.05
Avg. Thickness (mm) 0.18
Color 1、2、3、4
Cores Twisted Yes
Drain Construction(mm) —–
Material —–
Al Constructive Side —–
Overlap Rate —–
Mylar Overlap Rate —–
Assemble Cabling OD (mm) 5.00 (Ref.) + Filler
Mylar Overlap Rate —–
Al Constructive Side —–
Drain Construction(mm) —–
Material —–
Braid Construction(mm) —–
Material —–
Coverage —–
Jacket Material PVC (Bright)
OD(mm) 6.20±0.20
Avg. Thickness (mm) 0.6
Color BLUE (PVC001-6027)PT287C
Jet Print Color BLACK
Electrical Characters:
1. Voltage Rating: 30V Temperature Rating: 60℃
2. Dielectric Strength: AC-500V/MIN
3. Insulation resistance: 100M (OHMS * KM MIN at 20℃）
Physical Characters:
Test Object Jacket
AWG 24
